Smidley™ makes one of the most durable stainless steel feeders in the swine industry. Smidley's stainless feeders are constructed of the highest quality of 304 SS. All exposed edges are rolled for maximum strength, clean-ability and safety. The feeders are double welded to increase life-span and durability. |
"M" Style Nursery Feeder Specifications |
|

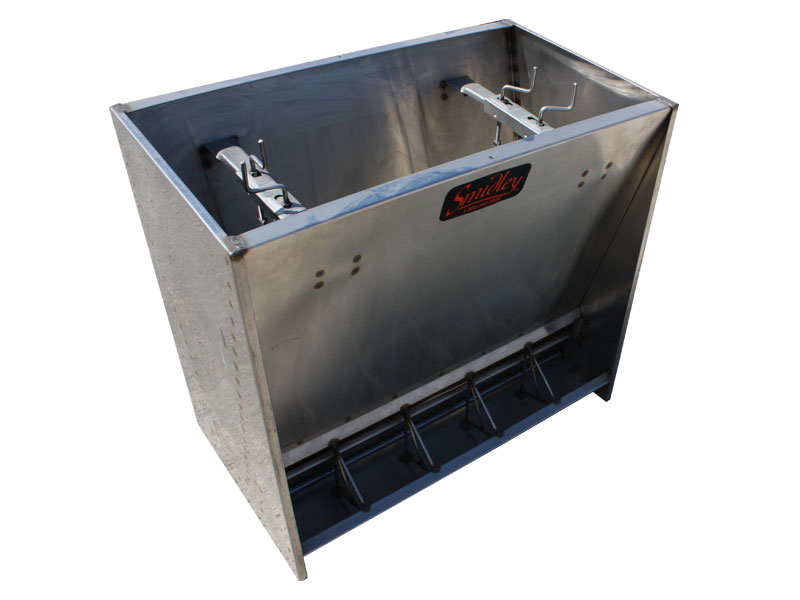

"M" Style Nursery Feeder |
Style “M” Nursery Feeder – Single Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 14128 |
1/2 #4, 4 feed openings |
2 bu. |
24" |
28" |
8 3/4" |
34 lbs. |
| 15128 |
1/2 #5, 5 feed openings |
2.5 bu. |
30" |
28" |
8 3/4" |
39 lbs. |
| 16128 |
1/2 #6, 6 feed openings |
3 bu. |
36" |
28" |
8 3/4" |
44 lbs. |
| 18128 |
1/2 #8, 8 feed openings |
4 bu. |
48" |
28" |
8 3/4" |
53 lbs. |
Style “M” Nursery Feeder – Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 14228 |
#4, 8 feed openings |
3.5 bu. |
24" |
28" |
17 1/2" |
45 lbs. |
| 15228 |
#5, 10 feed openings |
4 bu. |
30" |
28" |
17 1/2" |
52 lbs. |
| 16228 |
#6, 12 feed openings |
5 bu. |
36" |
28" |
17 1/2" |
58 lbs. |
| 18228 |
#8, 16 feed openings |
6 bu. |
48" |
28" |
17 1/2" |
71 lbs. |
|
|
- Easy crank, top adjust
- Feeds down all rations
- Welded construction for maximum strength
- All edges safety smoothed and hemmed
- 16 gauge dividers with 6” feed openings
- Single or double sided
 |
 |
 |
| Nursery Feeder |

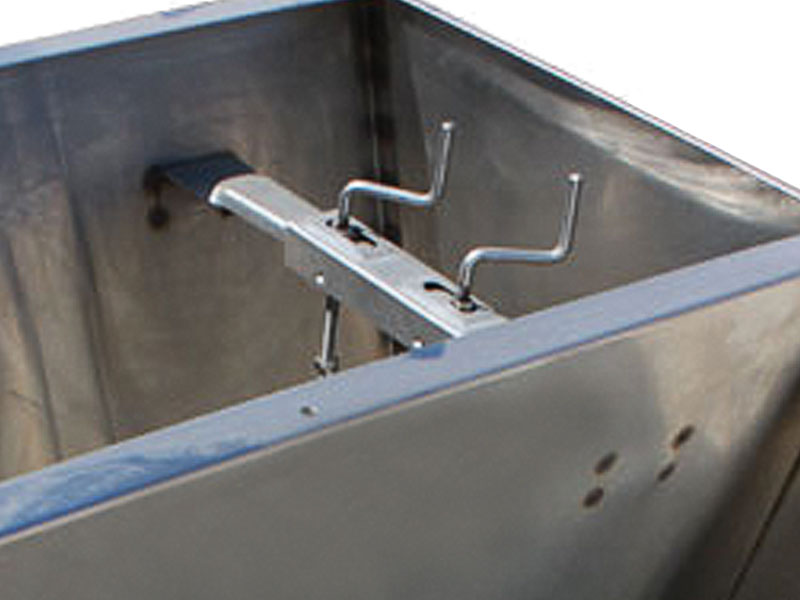

Adjustable Feed Gate |
|
|
| |
|
|
|
